Layout suggestions - 1966 ??

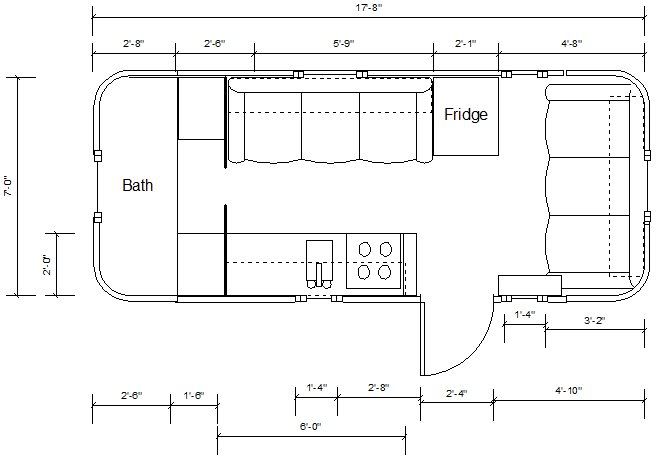

Below are pictures of the original layout and my currently planned layout for the 66 Globetrotter we just picked up. It's to scale although I didn't go so far as to make the radius of the curves in the corners exact.

We like to have a dinette for playing cards and such, hence the small one on across from the galley. The larger will convert to a decent sized bed which can stay down when it's just the two of us - or can be a fairly large U shaped dinette if we have kids / grandkids joining.

We want to salvage the bathroom layout and preferred to keep exiting venting for stove hood and fridge. Played with a few other variations that included moving some of that but none that were worth the extra effort so this is what we've concluded so far.

Thoughts would be appreciated
